Describes the components and architecture of a basic Workload XM
environment.
Workload XM on-premises consists of two or more clusters:
Workload XM on-premises cluster, which is a CDP cluster that is managed by
Cloudera Manager. Workload XM and all its main component services are installed and run in
this cluster. Users access the Workload XM web user interface from the web host server in
this cluster.
Workload Cluster, which is a CDH, CDP, or HDP cluster managed by Cloudera
Manager. This cluster is associated with Telemetry Publisher in Cloudera Manager and runs
your workload processes.

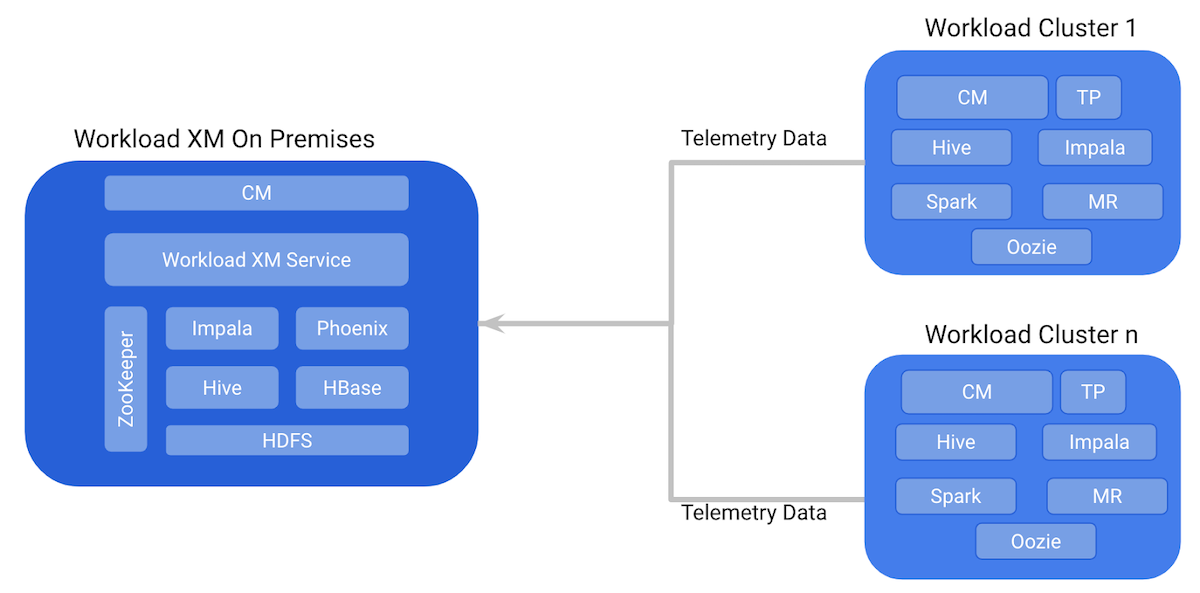

The below diagram shows the communication between Workload XM on-premises and your workload
clusters through Telemetry Publisher. Where, the Workload XM service is installed on the left
cluster, including the Workload XM main component services, and the Workload clusters on the
right contain the services required to run your workload processes. Telemetry data collected
by Telemetry Publisher is passed from these clusters to the Workload XM on-premises
cluster.
