Ports Used by Cloudera Manager and Cloudera Navigator

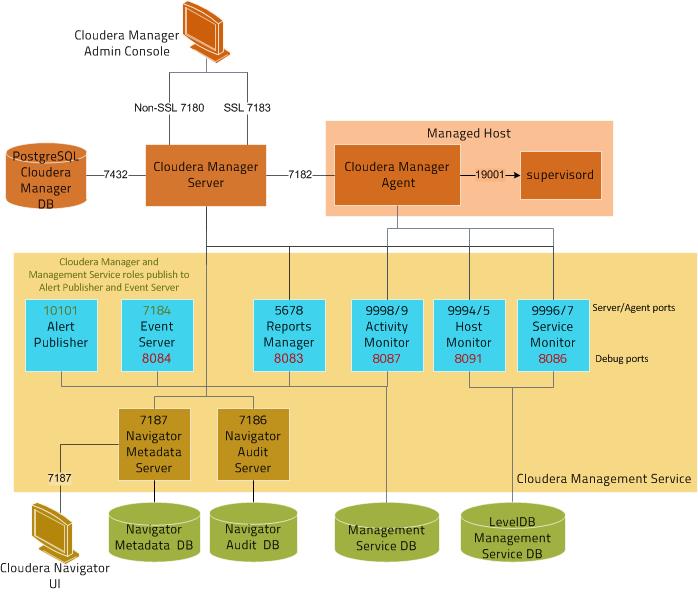

The following diagram provides an overview of the ports used by Cloudera Manager, Cloudera Navigator, and Cloudera Management Service roles:
For further details, see the following table:
For further details, see the following table:
| Component | Service | Port | Protocol | Access Requirement | Configuration | Comment |
|---|---|---|---|---|---|---|
| Cloudera Manager Server | HTTP (Web UI) | 7180 | TCP | External | Administration > Settings > Ports and Addresses | |
| HTTPS (Web UI) | 7183 | TCP | External | Used for HTTPS on master, if enabled. HTTP is the default; only one port is open for either HTTP or HTTPS, not both | ||
| Avro (RPC) | 7182 | TCP | Internal | Used for Agent to Server heartbeats | ||
| PostgreSQL database managed by cloudera-scm-server-db service | 7432 | TCP | Internal | The optional embedded PostgreSQL database used for storing configuration information for Cloudera Manager Server. | ||
| Cloudera Manager Agent | HTTP (Debug) | 9000 | TCP | Internal |
/etc/cloudera-scm-agent/config.ini |
|
| Internal supervisord | localhost: 19001 | TCP | localhost | supervisord status and control port; used for communication between the Agent and supervisord; only open internally (on localhost) | ||
| Event Server | Listens for the publication of events. | 7184 | TCP | Internal | Cloudera Management Service > Configuration > ServerName Default Group > Ports and Addresses | |
| Listens for queries for events. | 7185 | TCP | Internal | |||
| HTTP (Debug) | 8084 | TCP | Internal | Allows access to debugging and diagnostic information | ||
| Alert Publisher | Internal API | 10101 | TCP | Internal | Cloudera Management Service > Configuration >ServerName Default Group > Ports and Addresses | |
| Service Monitor | HTTP (Debug) | 8086 | TCP | Internal | Cloudera Management Service > Configuration > ServerName Default Group > Ports and Addresses | |
| Listening for Agent messages (private protocol) | 9997 | |||||
| Internal query API (Avro) | 9996 | |||||
| Activity Monitor | HTTP (Debug) | 8087 | TCP | Internal | Cloudera Management Service > Configuration > ServerName Default Group > Ports and Addresses | |
| Listening for Agent messages (private protocol) | 9999 | |||||
| Internal query API (Avro) | 9998 | |||||
| Host Monitor | HTTP (Debug) | 8091 | TCP | Internal | Cloudera Management Service > Configuration > ServerName Default Group > Ports and Addresses | |
| Listening for Agent messages (private protocol) | 9995 | |||||
| Internal query API (Avro) | 9994 | |||||
| Reports Manager | Queries (Thrift) | 5678 | TCP | Internal | Cloudera Management Service > Configuration > ServerName Default Group > Ports and Addresses | |
| HTTP (Debug) | 8083 | TCP | Internal | |||
| Cloudera Navigator | Cloudera Management Service > Configuration > ServerName Default Group > Ports and Addresses | |||||
| Audit Server | HTTP | 7186 | TCP | Internal | ||
| Metadata Server | HTTP (Web UI) | 7187 | TCP | External | ||
| Task Tracker Plug-in (used for activity monitoring) | HTTP (Debug) | localhost: 4867 | TCP | localhost | Used only on localhost interface by monitoring agent | |
| Backup and Disaster Recovery | HTTP (Web UI) | 7180 | TCP | External | Administration > Settings page > Ports and Addresses | Used for communication to peer (source) Cloudera Manager. |
| HDFS NameNode | 8020 | TCP | External | HDFS > Configuration > NameNode Role Group > Ports and Addresses: NameNode Port | HDFS and Hive replication: communication from destination HDFS and MapReduce hosts to source HDFS NameNode(s). Hive Replication: communication from source Hive hosts to destination HDFS NameNode(s). | |
| HDFS DataNode | 50010 | TCP | External | HDFS > Configuration > DataNode Role Group(s) > Ports and Addresses: DataNode Transceiver Port | HDFS and Hive replication: communication from destination HDFS and MapReduce hosts to source HDFS DataNode(s). Hive Replication: communication from source Hive hosts to destination HDFS DataNode(s). |
